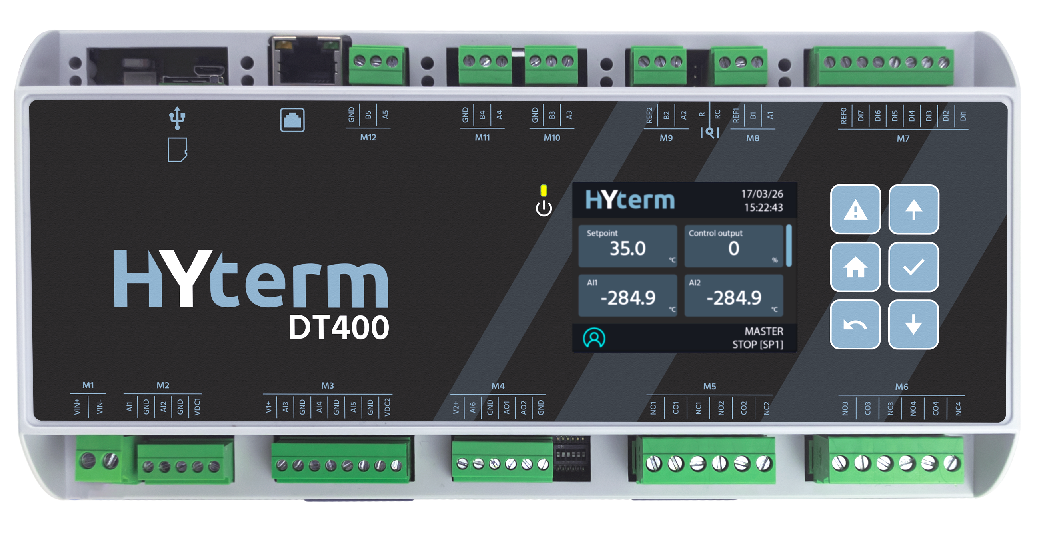

DT400 is an advanced controller designed for speed regulation of electronic fans installed on finned heat exchangers. DT400 has been specifically developed for mission critical applications such as datacenters and power generation.
Based on a modern platform equipped with a latest-generation processor, it allows local FW updates through the integrated USB port or remotely via GR IIoT gateways.
Features two isolated MODBUS RTU RS485 interfaces, two serial interfaces for expansions, one micro USB port and an optional LAN port with integrated MODBUS TCP/IP or SNMP protocol. A wide range of communication protocol converters is also available (BACnet, Konnex, Ethernet, Ethernet IP, Profibus, Profinet and many others).
The integrated Bluetooth connection and the free HyCo application allow monitoring and configuration of the DT400 controller from IOS or Android mobile devices.
Thanks to carefully designed control algorithms, DT400 enables efficient fan group management by reducing energy consumption and increasing efficiency.
Thanks to expansion modules, it can increase its I/O equipment. Specialized expansion modules are also available for managing modern adiabatic systems.
Equipped with a user interface consisting of 6 keys and a color graphic display with 320x240 pixel LED backlight. Thanks to a dedicated serial line, it is possible to add a second remote user interface.
Easily adapts to a wide variety of operating conditions, allowing configuration and programming of analog and digital I/Os.
Natively integrates a Plug & Play connection to GR IIoT gateways to transmit process data to the HyCloud platform, enabling monitoring and support of the heat exchanger anywhere in the world.
| TECHNICAL DATA | |
|---|---|
| Nominal voltage | 24Vac ±10% 50/60Hz 20 ÷ 32Vdc |
| Power consumption | 10VA |
| Electrical connections | Removable screw terminal block pitch 3.81 / 5.08 |
| Cable section | min 0.5 mm² ÷ max 2.5mm² min 20 AWG Cu ÷ max 14 AWG Cu |
| OPERATING CONDITIONS | |
|---|---|
| Operating temperature | -20 ÷ 50°C – Rh max 85% non-condensing -20 ÷ 60°C – with analog output limitation |
| Storage temperature | –35 ÷ 85°C – Rh max 85% non-condensing |
| Vibrations | Vibrations <1g (9.8ms2) |
| Degree of protection | IP20 |
| CONNECTIVITY | |
|---|---|
| Communication lines | 2 – MODBUS RTU RS485 optoisolated 3 – Serial lines for expansions |
| Bluetooth | Internal |
| USB | Micro USB |
| SD | Micro SD |
| INPUTS/OUTPUTS | |
|---|---|
| Analog inputs | 6 configurable inputs 0-5V, 0-10V 0-20mA 4-20mA, NTC |
| Digital inputs | 7 digital inputs (dry contact) All inputs can be configured as NO or NC |
| Analog outputs | 2 analog outputs 0-10V max 20mA per output 2 analog outputs 0-10V max 10mA per output (60°C) |
| Digital outputs | 4 digital outputs (changeover contact 250V 3A) All outputs can be configured as NO or NC |
| ENCLOSURE | |
|---|---|
| Mounting | DIN rail mounting according to DIN 43880 CEI EN 50022 |
| Material | ABS |
| Color | Grey RAL 7035 + Blue RAL 5014 |
| Dimensions | 224 x 113 x 50 mm |
| Weight | 500 g |
| STANDARDS | |
|---|---|
| Compliance | 2014/35/EU (LVD – Low Voltage) 2014/30/EU (EMC – Electromagnetic Compatibility) |
| Reference standards | CEI EN60730 -1, CEI EN60730-2-9 EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4; EN 55014-1, EN 55014-2 |
| PRODUCT CODES | |
|---|---|
| 10.016.00.0000 | DT400 - IP20 DIN rail blind speed controller with Ethernet port - MODBUS TCP/IP |
| 10.016.00.0001 | DT400 - IP20 DIN rail UI speed controller with Ethernet port - MODBUS TCP/IP |
DB100 is a family of remote displays for DT series controllers. They are equipped with 6 keys and a TFT graphic display with 320x240 pixel resolution, color screen and LED backlight.
The protocol converters of the CPE family have been designed to connect Hyterm regulators to the most widespread communication networks and field buses for building and industrial automation on the market.
GR300 is the ideal solution for remote control, remote access, and monitoring of finned-pack heat exchangers and ventilation systems.
DS400 is an expansion module designed for the control of adiabatic systems installed on finned pack heat exchangers, to be combined with the DT400 controller.
DV100 is an expansion module designed for controlling three-way valves mounted on finned heat exchangers, to be paired with the DT400 controller.
DR100 is an expansion module designed for the control of the recirculation tank of adiabatic systems mounted on finned heat exchangers, to be combined with DT400 and DS400 controllers.
