EN080
EN080 is an innovative instrument for measuring the electrical parameters of heat exchangers. It is used in a wide range of application sectors such as agriculture, HVAC, process industry, and data centers.
EN080 is an innovative instrument for measuring the electrical parameters of heat exchangers. It is used in a wide range of application sectors such as agriculture, HVAC, process industry, and data centers.
EN080 provides complete and accurate information about the heat exchanger and allows precise calculation of energy consumption costs.
• Voltage [V]
• Current (+/-) [A]
• Active power (+/-) [W]
• Power factor
• Voltage THD [V]
• Current THD [A]
• Frequency [Hz]
• Phase sequence
• Active energy [Wh]
• Reactive energy [VARh]
• Apparent energy [VAh]
The collected data allows the generation of consumption profiles, trends of recorded values, event/alarm reports, and identification of critical values.
Equipped with a user interface consisting of 3 keys and an LED backlit LCD display.
Based on a modern platform equipped with a latest-generation processor, it allows remote firmware updates.
| TECHNICAL DATA | |
|---|---|
| Rated voltage | 85 ÷ 265 VAC 110 VDC ± 15% |
| Safety | 300 V CAT III |
| Maximum consumption | 1.6 VA - 1 W |
| Frequency | 50/60 Hz |
| Voltage measurement range | 3x 10 / 17 ÷ 3x 285 / 495 VAC |
| Current measurement range | 80 A (Direct), 150 A (External CTs) |
| Starting current | 20 mA (Direct), 2 mA (External CTs) |
| OPERATING CONDITIONS | |
|---|---|
| Operating temperature | -25 ÷ 55°C (3K6) |
| Storage temperature | -25 ÷ 75°C (2K3) |
| Maximum humidity | 80% (non-condensing) |
| Sinusoidal vibration amplitude | 50 Hz ± 0.075 mm |
| Protection rating | IP51 (front) / IP20 (terminals) |
| Pollution degree | 2 |
| Installation and use | Indoor |
| TYPICAL ACCURACY | |
|---|---|
| Voltage | ± 0.2% of reading from 10% of FS |
| Current | ± 0.4% of reading from 5% of FS |
| Power | ± 0.5% of reading from ±0.1% of FS (PF=1) |
| Frequency | ± 0.1% of reading ± 1 digit in the range 45 ÷ 65 Hz |
| Active energy | Class 1 according to IEC/EN 62053-21 |
| Reactive energy | Class 2 according to IEC/EN 62053-23 |
| MEASUREMENTS | |
|---|---|

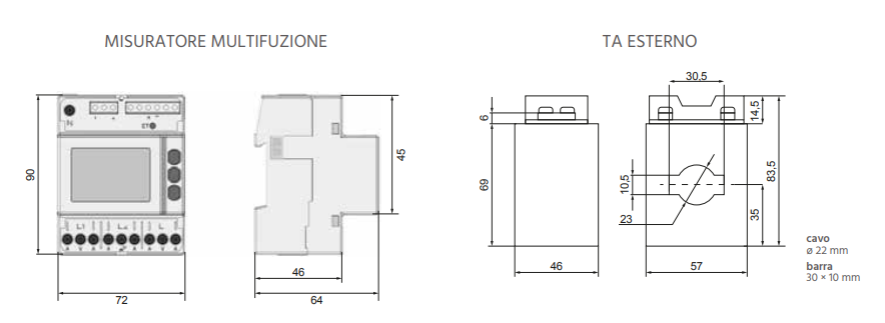

| Dimensions | 72 × 90 × 65 mm |
| Weight | 436 g |
| Measurement terminals | 1.5 ÷ 35 mm² (Direct) ø 23 mm (External CTs) |
| RS485 terminals | 0.14 ÷ 2.5 mm² |
| STANDARDS | |
|---|---|
| Compliance | 2014/35/EU (LVD – Low Voltage Directive) 2014/30/EU (EMC – Electromagnetic Compatibility) |
| Safety | EN 61010-1, EN 61010-2-030, EN 61010-2-032 |
| EMC | EN 61326-1, EN 55011, EN 61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN61000-6-2 |
| PRODUCT CODES | |
|---|---|
| 10.012.00.0000 | EN080 - Power network analyzer 400V 80A 50/60Hz direct connection |
| 10.012.00.0001 | EN150 - Power network analyzer + external CTs 400V 150A 50/60Hz |
